Band Building Machines
Click on Image to view Large
Click on Image to view Large
Click on Image to view Large
Click on Image to view Large
Click on Image to view Large
Click on Image to view Large
Click on Image to view Large

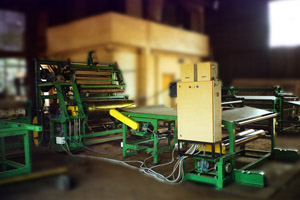

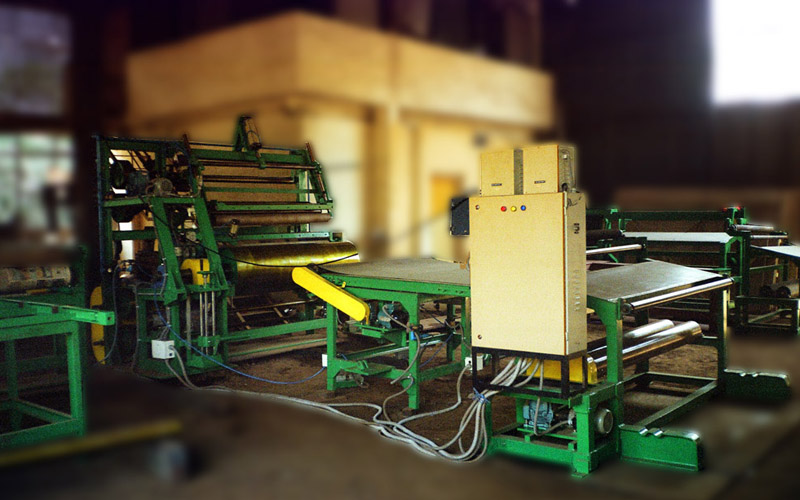

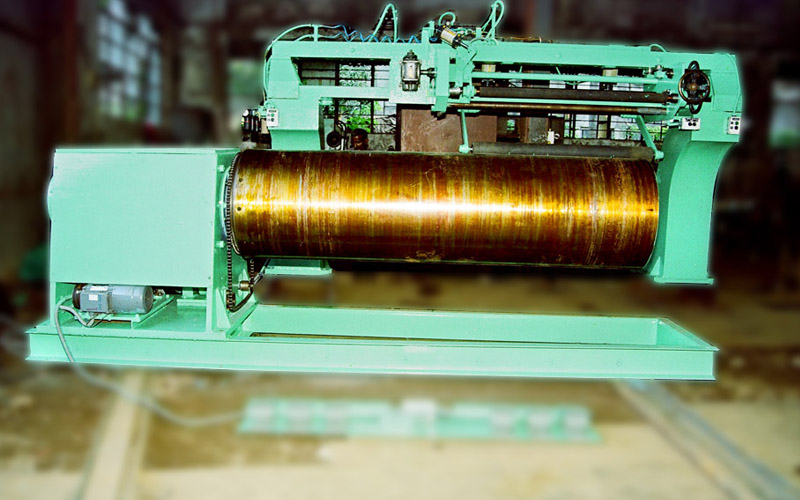

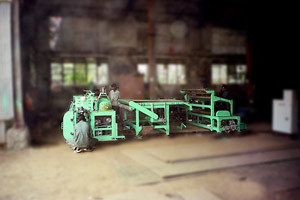

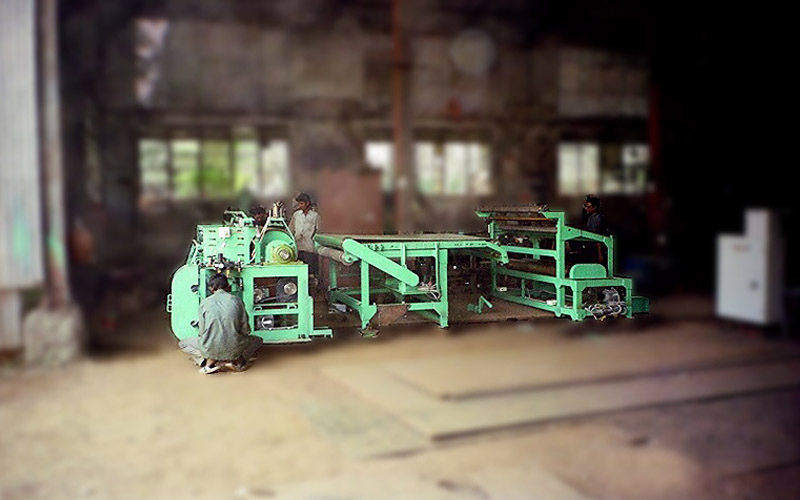

The Band Building Machines with Single/Double Squeezee unit comes with:-
-  Electrically driven Let-off Table complete with photoelectric cell for controlling the running of     electric motor by automatic starting and stopping of the same.

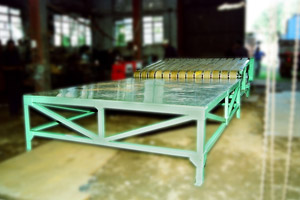

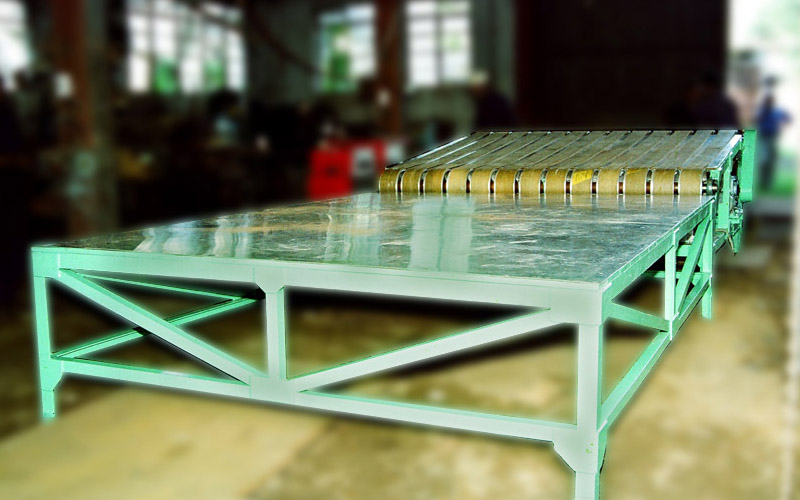

-  Pneumatically operated Intermediate conveyor and pressing Table complete with endless    belt.

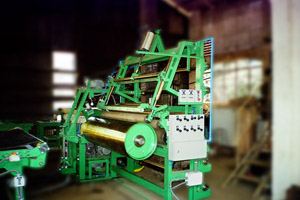

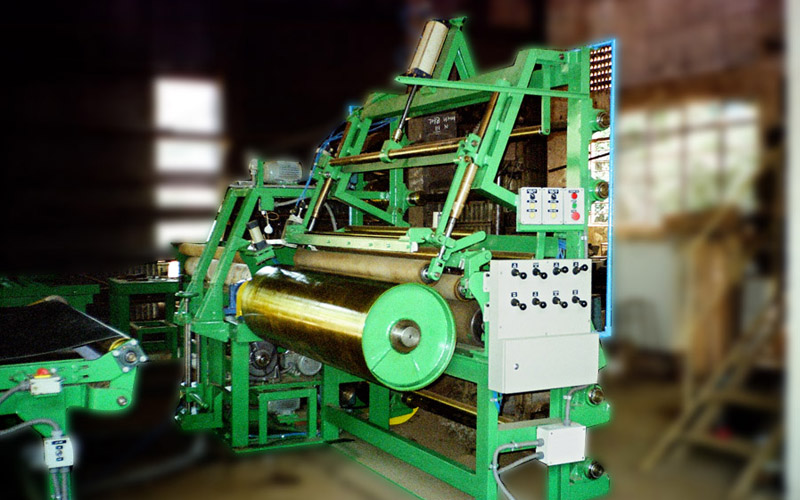

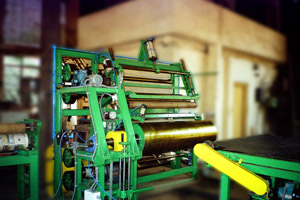

-Electrically driven and pneumatically operated Main Band Building Machine       made up of :-

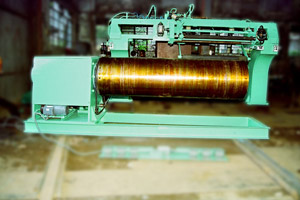

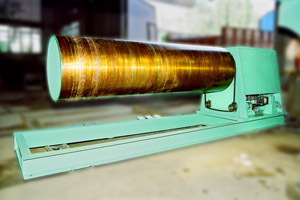

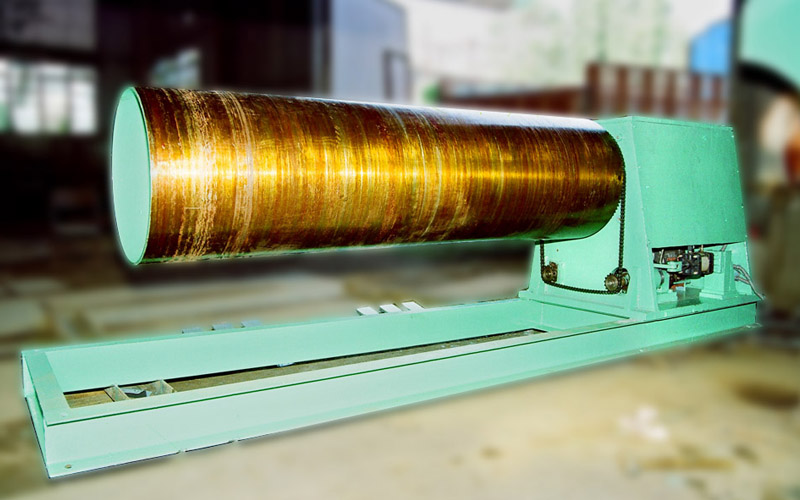

  • Wind- up Unit.
  • Bottom Squeezee Unit applying squeeze rubber on to the band, complete with electrically heated knife for cutting squeeze rubber.
  • Top Squeezee Unit (optional).
  • Back Stitcher unit.
SPECIFICATIONS:-

BBM 46"BBM 48"BBM 64"BBM 69"BBM 72"BBM 96"
Band Width Maximum1170mm1270mm1700mm1795mm1870mmR
E
F
E
R
B
E
L
O
W
Ply Width MaximumTBD1230mm1600mm1755mm1830mm
Top Squeeze width Maximum (optional)TBD1016mm1250mmTBD1500mm
Bottom Squeeze width Maximum1016mm1250mm1150mm1500mm
Band Perimeter Minimum1448mm1450mm1250mmTBD2100mm
Band Perimeter Maximum2600mm2600mm2050mm3380mm3500mm
PLEASE NOTE THAT MINOR CHANGES CAN BE MADE TO THE DESIGN AROUND THE ABOVE MODELS TO MEET YOUR SPECIFICATION REQUIREMENTS.
96’’ Band Building Machine (BBM 96”)
Specifications for BBM 96:
  • Maximum Ply width (Band width)  : 2400 mm
  • Maximum Band Circumference    : 3600 mm
  • Feeder Bobbin Dia                      : 250 mm
  • Feeder Bobbin Length                : 1220 mm
The Machine will consist of the following units:
  • Main Band assembling unit                : 1 no.
  • Band Stitcher/Squeeze Feeder Unit   : 1 no.
  • Conveyor                                           : 1 no.
  • Table                                                 : 1 no.
  • Electric Control Panel                        : 1 no.
Kindly note that for the BBM 96, initially the half width of Band Stitching/Squeeze applying is done on the machine and subsequently this unit is manually shifted (by hand wheel) for stitching the second half of the Band.
FOR DETAILED TECHNICAL SPECIFICATIONS PLEASE CONTACT US
