Slittering Machines
Click on Image to view Large
Click on Image to view Large
Click on Image to view Large
The Slittering/Slitting machine will consist of following:

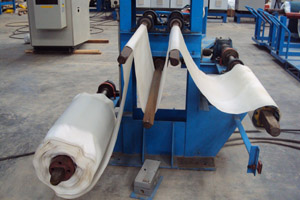

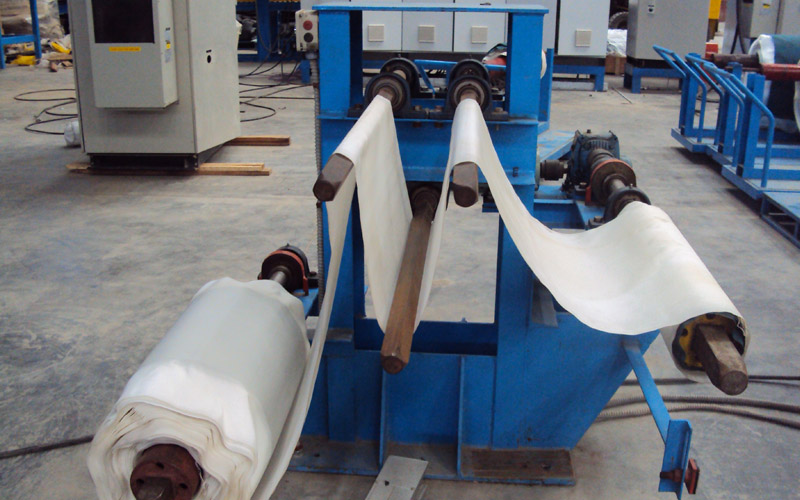

Let off unit:

  • A ply roll let off arrangement with band type brake.
  • A liner rewinding arrangement.
  • A dancer arrangement with limit switch to feed ply to the slitting arrangement.

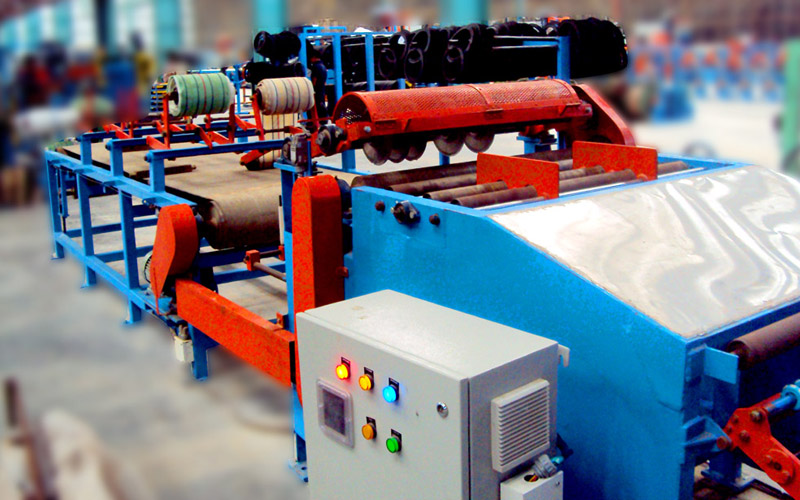

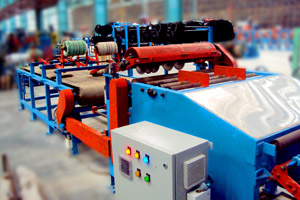

Slitting arrangement:

  • A separate driven cutter shaft with cutter blades.
  • Suitable guide rollers.
  • Slit fabric feed rollers ( shall be driven by the windup conveyor drive motor for speed synchronization).
  • Mechanical guide plates (adjustable width) as well as a set of trans wheels are provided at the entry of the fabric to the slitting arrangement. This makes the let off fabric to get properly guided before slitting.

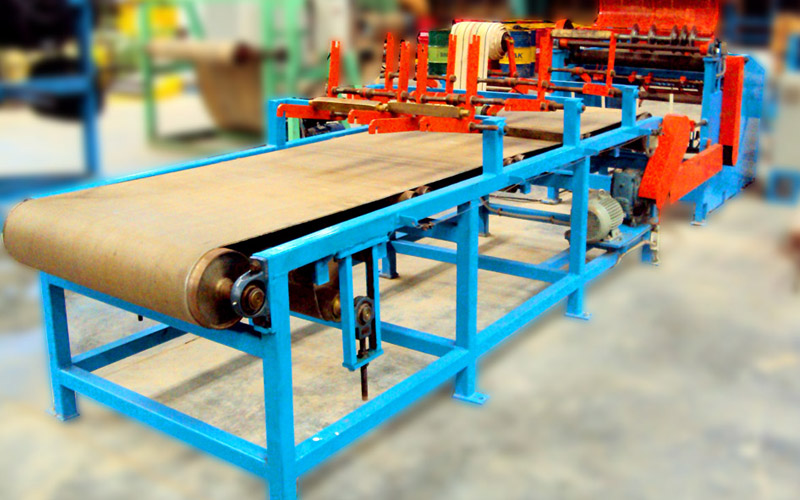

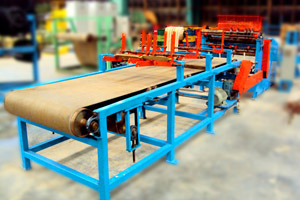

Windup table:

  • 4 meter long windup conveyor table with 3 ply canvass belt.
  • 6 windup stations. The location of the wind up shall be adjustable along the width of the table
Electrical:

  • Geared AC motor for Let-off unit.
  • Geared AC motor with AC Variable Frequency drive for windup table conveyor and slit fabric feed roller.
  • Geared AC motor with AC Variable Frequency drive for Cutter.
  • Control Panel along with various switches, emergency stop etc.
FOR DETAILED TECHNICAL SPECIFICATIONS PLEASE CONTACT US
